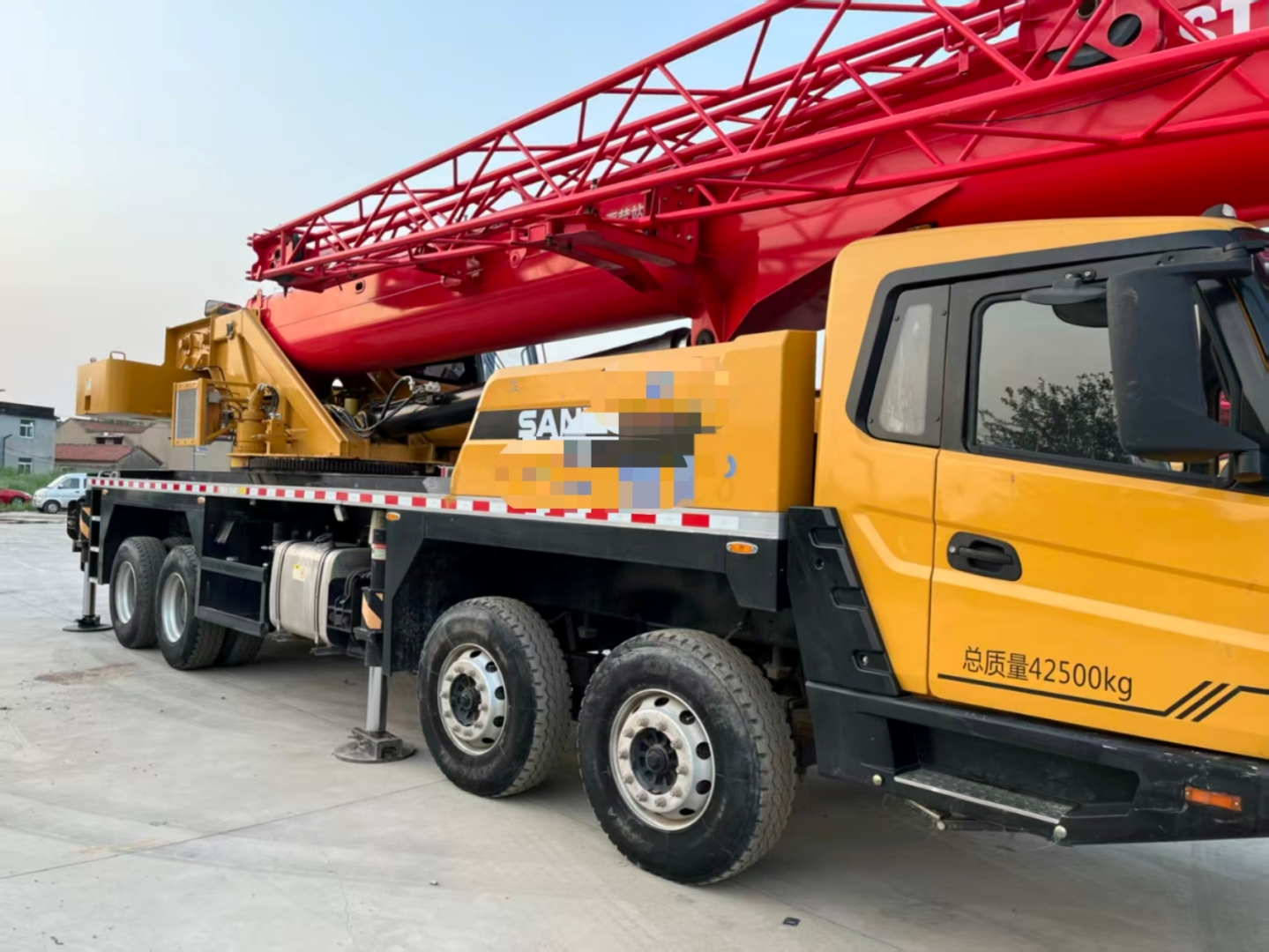

Product Type: SYM5436JQZ (STC500-6)
Application: 50t Truck Crane
Manufacturer: SANY Automobile Manufacturing Co., Ltd.
Date of Production: January 2023
Country of Origin: China
Get Best Price
Product Type: SYM5436JQZ (STC500-6)
Application: 50t Truck Crane
Manufacturer: SANY Automobile Manufacturing Co., Ltd.
Date of Production: January 2023
Country of Origin: China
Model: YCK09360-60
Type: 4-stroke, turbocharged, water-cooled diesel engine
Emission Standard: China VI (Euro VI equivalent)
Rated Power: 265 kW @ 1900 rpm
Max. Available Power: 260 kW @ 1900 rpm
Fuel Tank Capacity: ~400 L (typical)
Max. Rated Lifting Capacity: 50 t (at 3 m radius)
Max. Lifting Moment: ~2000 kN·m (typical)
Max. Lifting Height (boom + jib): ~57 m (boom ~43 m + jib ~14 m)
Boom Length: ~11 – 43 m (5-section)
Jib Length: ~14 m (optional)
Outrigger Span: ~7.5 m (longitudinal) × 6.0 m (transverse)
Slewing Speed: 0–2.5 rpm
Kerb Mass: 42,370 kg
Gross Vehicle Mass: 42,500 kg
Front Axle Load: ~17,000 kg
Rear Axle Load: ~25,500 kg
Overall Dimension (L × W × H): 14,420 × 2,800 × 3,885 mm
Wheelbase: ~4,750 + 1,350 mm
Approach Angle: 16°
Departure Angle: 13°
Min. Turning Radius: 12 m
Drive: 10 × 4
Transmission: Manual / Automated Manual (12F + 2R)
Max. Travel Speed: 85 km/h
Gradeability: 40%
Suspension: Leaf spring with shock absorbers
Tyres: 12.00R20 (or 315/80R22.5)
Type: Open circuit with variable displacement pump
Main Pump Flow: ~2 × 250 L/min
Hydraulic Oil Tank Capacity: ~600 L
Control Mode: Pilot proportional control
– Load Moment Limiter (LMI)
– Over-hoist & over-lower protection
– Boom angle indicator
– Outrigger monitoring system
– Emergency stop system
Product Type: SYM5436JQZ (STC500-6)
Application: 50t Truck Crane
Manufacturer: SANY Automobile Manufacturing Co., Ltd.
Date of Production: January 2023
Country of Origin: China
Model: YCK09360-60
Type: 4-stroke, turbocharged, water-cooled diesel engine
Emission Standard: China VI (Euro VI equivalent)
Rated Power: 265 kW @ 1900 rpm
Max. Available Power: 260 kW @ 1900 rpm
Fuel Tank Capacity: ~400 L (typical)
Max. Rated Lifting Capacity: 50 t (at 3 m radius)
Max. Lifting Moment: ~2000 kN·m (typical)
Max. Lifting Height (boom + jib): ~57 m (boom ~43 m + jib ~14 m)
Boom Length: ~11 – 43 m (5-section)
Jib Length: ~14 m (optional)
Outrigger Span: ~7.5 m (longitudinal) × 6.0 m (transverse)
Slewing Speed: 0–2.5 rpm
Kerb Mass: 42,370 kg
Gross Vehicle Mass: 42,500 kg
Front Axle Load: ~17,000 kg
Rear Axle Load: ~25,500 kg
Overall Dimension (L × W × H): 14,420 × 2,800 × 3,885 mm
Wheelbase: ~4,750 + 1,350 mm
Approach Angle: 16°
Departure Angle: 13°
Min. Turning Radius: 12 m
Drive: 10 × 4
Transmission: Manual / Automated Manual (12F + 2R)
Max. Travel Speed: 85 km/h
Gradeability: 40%
Suspension: Leaf spring with shock absorbers
Tyres: 12.00R20 (or 315/80R22.5)
Type: Open circuit with variable displacement pump
Main Pump Flow: ~2 × 250 L/min
Hydraulic Oil Tank Capacity: ~600 L
Control Mode: Pilot proportional control
– Load Moment Limiter (LMI)
– Over-hoist & over-lower protection
– Boom angle indicator
– Outrigger monitoring system
– Emergency stop system
