| Specification | Details |

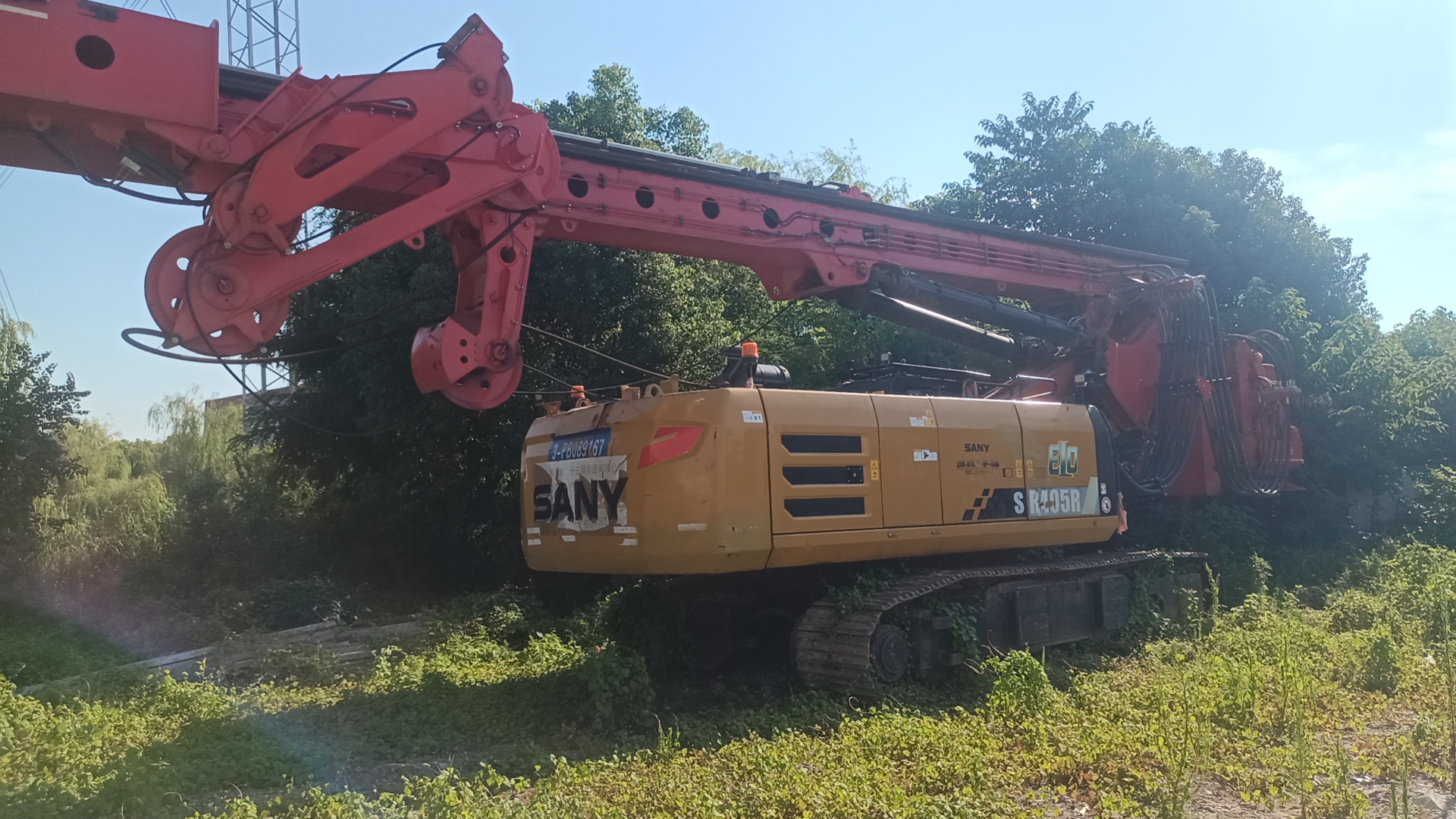

| Product Type | SR360R |
| Manufacturer | Beijing SANY Intelligent Technology Co., Ltd. |
| Address | SANY Industrial Park, Nankou Town, Changping District, Beijing, China |
| Date of Production | 2020.08 |
| Serial / Factory Number | SR360ECA07568 |
| Country of Manufacture | Made in China |
Get Best Price
| Specification | Details |
| Model | 6WG1 |
| Rated Power | 300 kW |
| Rated Voltage | 24 V DC |
| Emission Standard | Euro Stage IIIA (optional Tier 3) |
| Specification | Details |
| Max. Output Torque | 360 kN·m |
| Rotating Speed Range | 5 – 27 rpm |
| Max. Drilling Diameter | 3000 mm |
| Max. Drilling Depth | 94 m (standard) / 122 m (optional) |
| Crowd Force (Push/Pull) | 275 / 335 kN |
| Line Pull of Main Winch | 330 kN |
| Line Pull of Auxiliary Winch | 90 kN |
| Main Winch Rope Diameter | 36 mm |
| Auxiliary Winch Rope Diameter | 20 mm |
| Specification | Details |
| Operating Dimensions (L × W × H) | 9595 mm × 4760 mm × 26395 mm |
| Operating Weight | 105,000 kg |
| Transport Dimensions (L × W × H) | 17,300 mm × 3,500 mm × 3,800 mm |
| Specification | Details |
| Crawler Track Width | 800 mm |
| Track Shoe Width | 800 mm (optional 900 mm) |
| Crawler Length | 5,800 mm |
| Travel Speed | 1.2 km/h |
| Specification | Details |
| Main Pump Flow Rate | 2 × 450 L/min |
| Hydraulic Pressure | 35 MPa |
| Hydraulic Oil Tank Capacity | 1000 L |
| Specification | Details |
| Suitable Soil Layers | Clay, silt, sand, gravel, soft to medium-hard rock (with appropriate tools) |
| Applicable Foundation Construction | Bored piles, diaphragm walls, CFA piles (optional) |
| Specification | Details |
| Model | 6WG1 |
| Rated Power | 300 kW |
| Rated Voltage | 24 V DC |
| Emission Standard | Euro Stage IIIA (optional Tier 3) |
| Specification | Details |
| Max. Output Torque | 360 kN·m |
| Rotating Speed Range | 5 – 27 rpm |
| Max. Drilling Diameter | 3000 mm |
| Max. Drilling Depth | 94 m (standard) / 122 m (optional) |
| Crowd Force (Push/Pull) | 275 / 335 kN |
| Line Pull of Main Winch | 330 kN |
| Line Pull of Auxiliary Winch | 90 kN |
| Main Winch Rope Diameter | 36 mm |
| Auxiliary Winch Rope Diameter | 20 mm |
| Specification | Details |
| Operating Dimensions (L × W × H) | 9595 mm × 4760 mm × 26395 mm |
| Operating Weight | 105,000 kg |
| Transport Dimensions (L × W × H) | 17,300 mm × 3,500 mm × 3,800 mm |
| Specification | Details |
| Crawler Track Width | 800 mm |
| Track Shoe Width | 800 mm (optional 900 mm) |
| Crawler Length | 5,800 mm |
| Travel Speed | 1.2 km/h |
| Specification | Details |
| Main Pump Flow Rate | 2 × 450 L/min |
| Hydraulic Pressure | 35 MPa |
| Hydraulic Oil Tank Capacity | 1000 L |
| Specification | Details |
| Suitable Soil Layers | Clay, silt, sand, gravel, soft to medium-hard rock (with appropriate tools) |
| Applicable Foundation Construction | Bored piles, diaphragm walls, CFA piles (optional) |
